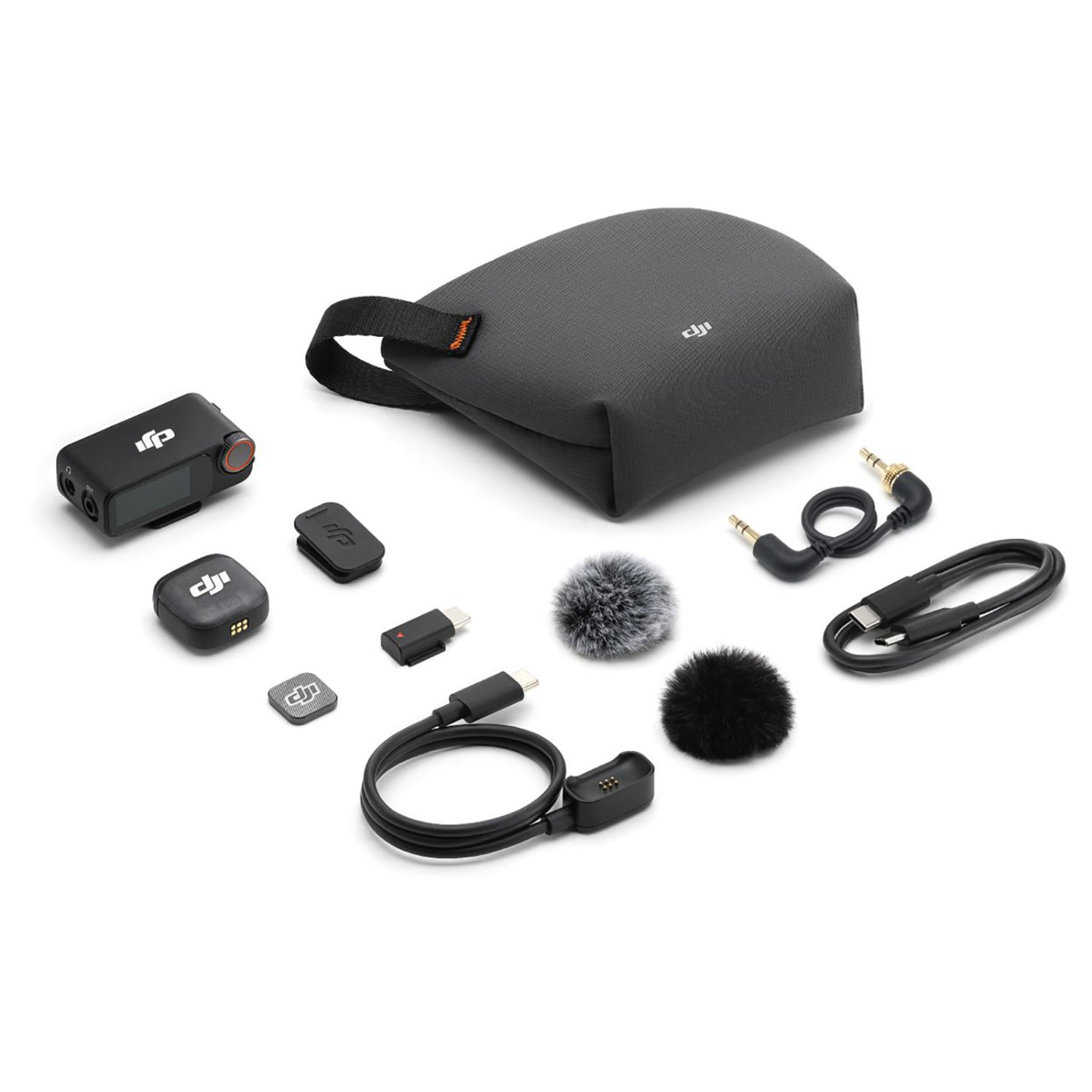

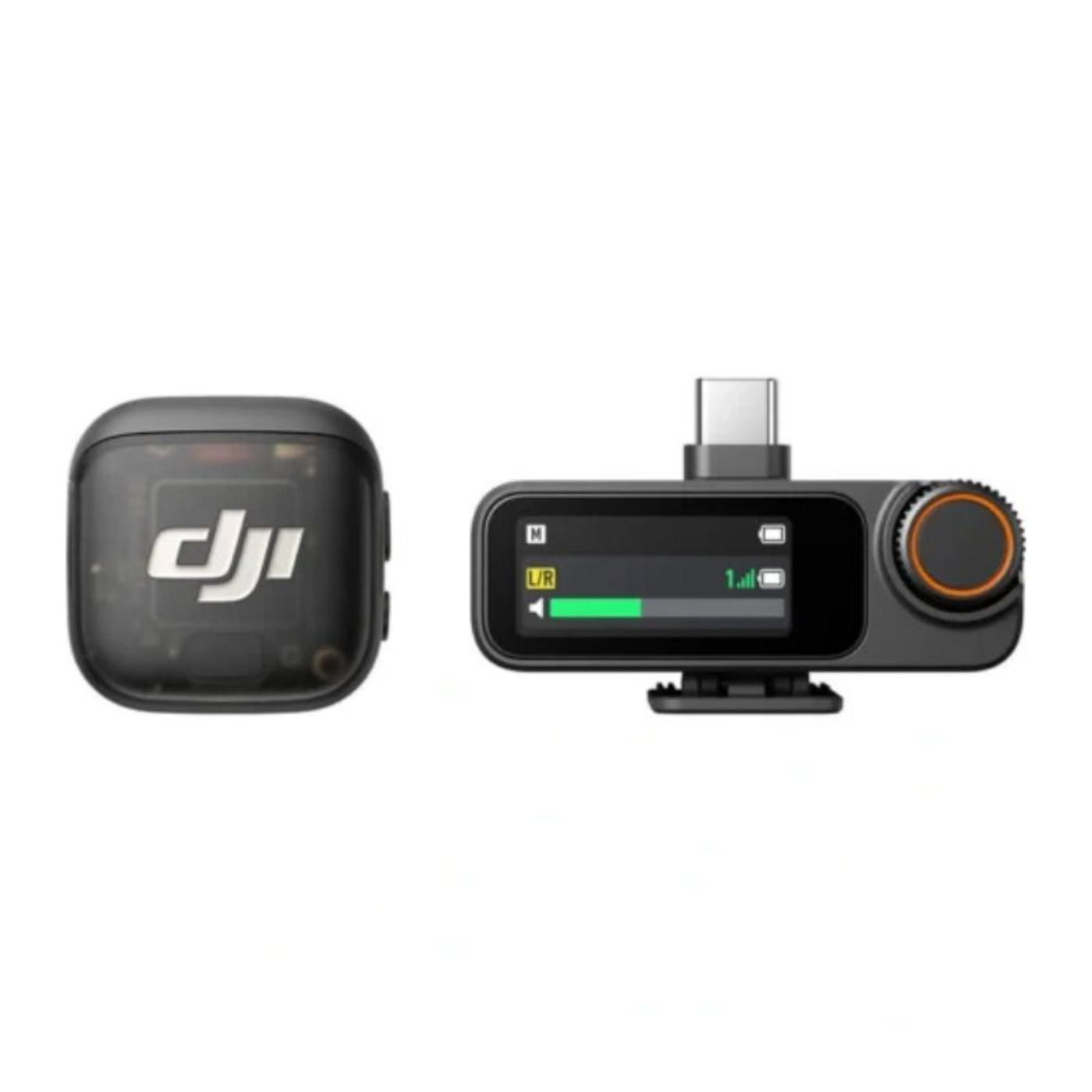

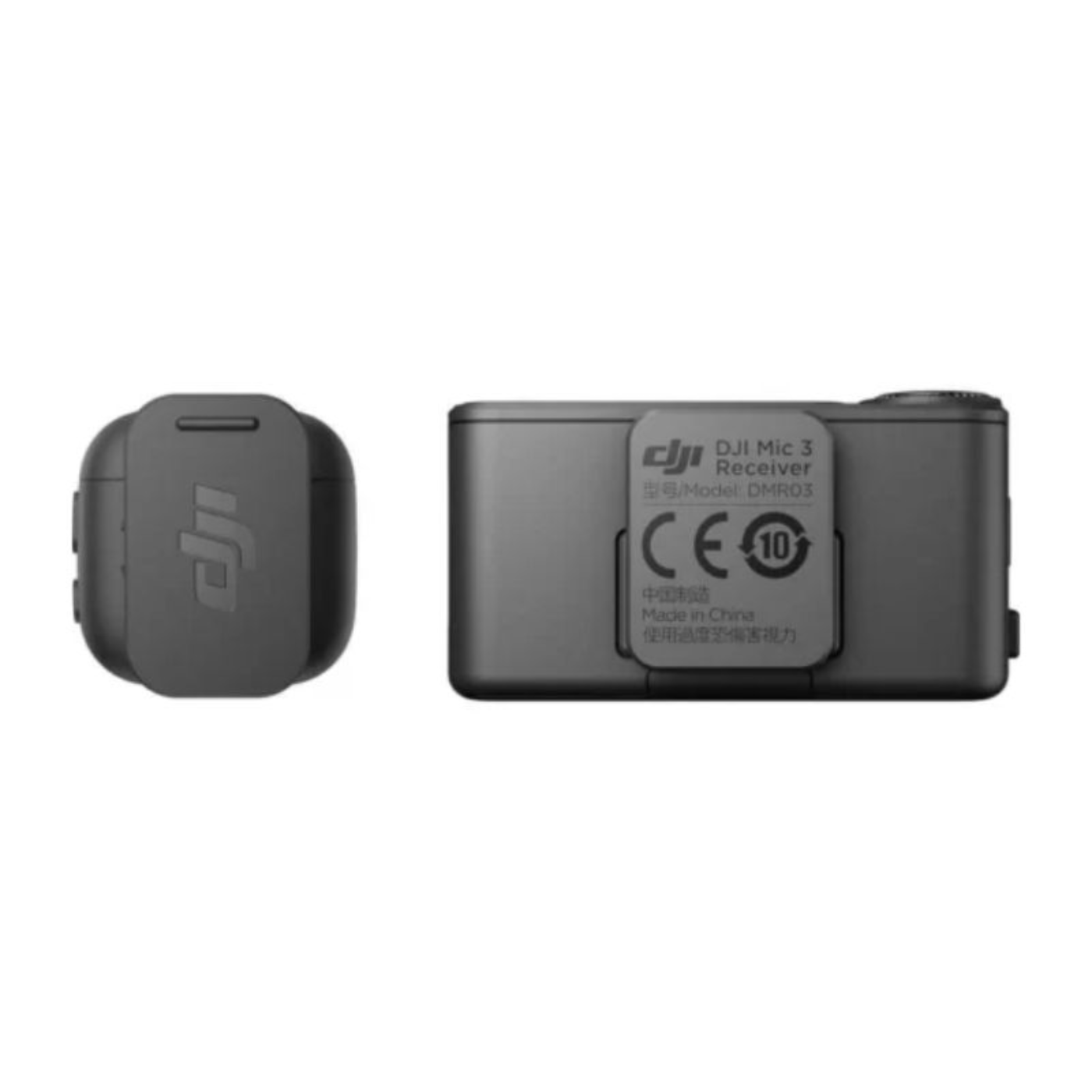

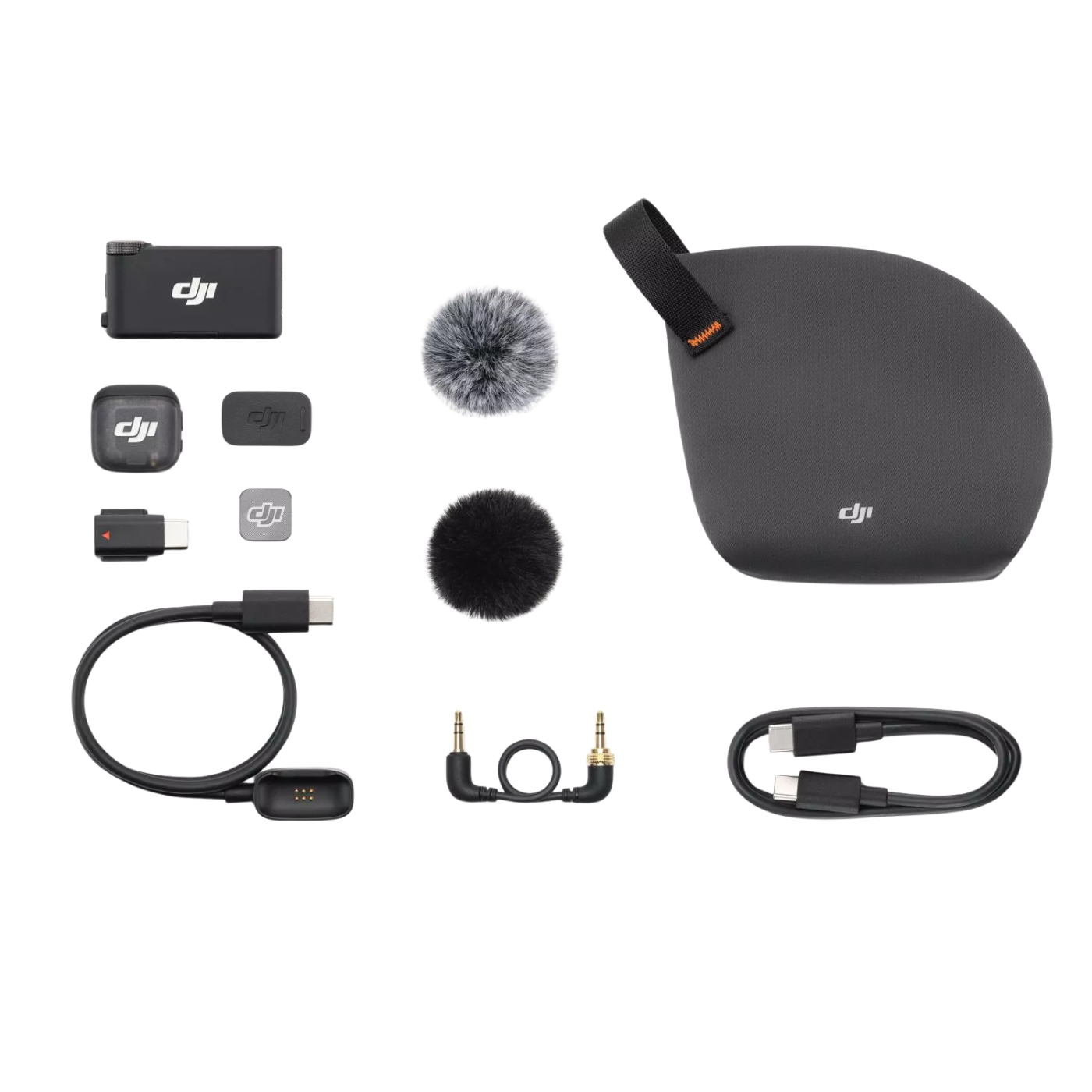

DJI Mic 3 (1 TX + 1 RX)
Available in stock
| Transmitter Model | DMT03 |
| Receiver Model | DMR03 |
| Charging Case Model | DMC03 |
| Transmitter Dimensions | 28.77×28.34×16.35 mm |
| Receiver Dimensions | 53.85×28.69×22 mm |
| Charging Case Dimensions | 106.3×42.5×59.2 mm |
| Transmitter Weight | 16 g |
| Receiver Weight | 25.1 g |
| Charging Case Weight | 164.1 g |
| Wireless Mode | Wi-Fi 802.11 a/b/g/n/ac/ax, SDR customizable |
| Bluetooth Protocol | Bluetooth 5.4 |
| Operating Frequency | 2.4 GHz & 5 GHz bands (varies by country) |
| Battery Type | Li-ion |
| Transmitter Battery Capacity | 137 mAh |
| Receiver Battery Capacity | 275 mAh |
| Charging Case Battery | 1950 mAh |
| Max Transmission Distance | 400 m (open), 80 m (high-interference) |
| Audio Quality | 24-bit / 32-bit float, 20 Hz–24 kHz |
| Internal Recording | 57.3 hours (24-bit single), 21.5 hours (32-bit float dual) |
| Charging Time | Transmitter/Receiver: 50 min, Case: 1.5 hr |
Description
specification
specification
| Specification | Details |
|---|---|
| Model | DMT03 |
| Dimensions | 28.77×28.34×16.35 mm (L×W×H) (with magnet) |
| Weight | 16 g (with magnet) |
| Wireless Mode | Wi-Fi: 802.11 a/b/g/n/ac/ax SDR: Customizable |
| Equivalent Isotropic Radiated Power (EIRP) | Wi-Fi: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE) SDR: 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC) 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE) Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Wireless Mode Operating Frequency | Wi-Fi: 2.400-2.4835 GHz 5.725-5.850 GHz SDR: 2.400-2.4835 GHz 5.150-5.250 GHz 5.250-5.350 GHz 5.470-5.725 GHz 5.725-5.850 GHz Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Bluetooth Protocol | Bluetooth 5.4 |
| Bluetooth Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power (EIRP) | BLE: < 10 dBm BR/EDR: < 20 dBm Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Battery Type | Li-ion |
| Battery Capacity | 137 mAh |
| Battery Energy | 0.531 Wh |
| Battery Voltage | 3.87 V |
| Charging Specification | Max 5 V |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Charging Time | Approx. 50 minutes |
| Operating Time | 8 hours Measured using DJI Mic 3 (2 TX + 1 RX + Charging Case), with features such as noise cancellation and internal recording off, during close-range audio recording under interference-free conditions, with both transmitters connected to the receiver and the receiver connected to a camera via the 3.5mm audio cable. |
| Internal Recording Available Duration | 24-bit (single file): 57.3 hours 24-bit (dual file): 28.6 hours 32-bit float (single file): 43.0 hours 32-bit float (dual file): 21.5 hours |
